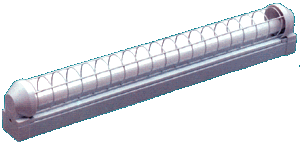

Wire Guard Fittings

This quality wire guard fitting is recommended for economical lighting applications. Designed with rugged wire guard for the prevention of vandalism and theft. The housing is made of high grade materials and finished in white powder coating for durability. This fitting is suitable for ceiling mounting, wall mounting and pendant mounting by the use of the suspension system. Mainly used in public places for general illumination.

Model No. No. of Lamps L W W1 H H1 JWG 120 1 x 18W 620 55 64 45 100 JWG 220 2 X 18W 620 55 125 45 100 JWG 140 1 X 36W 1235 55 64 45 100 JWG 240 2 X 36W 1235 55 125 45 100 Note: All dimensions in mm and the tolerance is +/- 1.5mm

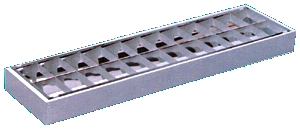

Mirror Reflector Fittings
Series - Recessed Wood Ceiling/WC

This quality light fitting is for recess mounting on wood ceiling or plaster ceiling. The parabolic aluminium mirror optic louvre ensures even light distribution and glare is minimized. Maintenance on the light is simplified by the use of spring latch system. The housing is made of high grade materials and finished in white powder coating for durability. This fitting is suitable for general lighting in offices and supermarkets

Model No. No. of Lamps L L1 W W1 H H1 JMF 120/WC 2 x 18W 615 635 300 335 90 95 JMF 220/WC 2 X 18W 615 635 605 640 90 95 JMF 320/WC 3 X 18W 615 635 605 640 90 95 JMF 420/WC 4 X 18W 615 635 605 640 90 95 JMF 240/WC 2 X 36W 1225 1245 300 335 90 95 JMF 240/WC 2 X 36W 1225 1245 605 640 90 95 JMF 340/WC 3 X 36W 1225 1245 605 640 90 95 JMF 440/WC 4 X 36W 1225 1245 605 640 90 95 Note: All dimensions in mm and the tolerance is +/- 1.5mm

<<

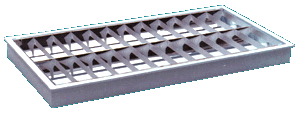

Mirror Reflector Fittings
Series - Surface Mounted Ceiling/S

This quality light fitting is for direct mounting to ceiling. The parabolic aluminium mirror optic louvre ensures even light distribution and glare is minimized. Maintenance on the light is simplified by the use of spring latch system. The housing is made of high grade materials and finished in white powder coating for durability. This fitting is suitable for general lighting in offices and supermarkets.

Model No. No. of Lamps L W H JMF 120/S 2 x 18W 610 300 95 JMF 220/S 2 X 18W 610 595 95 JMF 320/S 3 X 18W 610 595 95 JMF 420/S 4 X 18W 610 595 95 JMF 240/S 2 X 36W 1220 300 95 JMF 240/S 2 X 36W 1220 595 95 JMF 340/S 3 X 36W 1220 595 95 JMF 440/S 4 X 36W 1220 595 95 Note: All dimensions in mm and the tolerance is +/- 1.5mm
