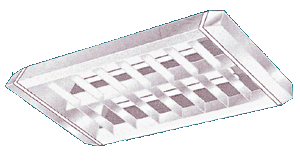

Commercial
Mirror Louvre Luminaire
CSBW11
|
Type:
The luminaire is suitable for single/twin
36/40W fluorescent tubes.
Luminaire:
Fabricated from CRCA sheet steel and epoxy powder
coated white from inside and outside. Prewired
with vacuum pressure impregnated copper ballasts,
push fit type rotor lock holders, push fit type
starter seats, power factor improvement capacitor
and mains connector. Decorative high impact polystyrene
end plates are provided for aesthetic appeal.
Optical
Assembly:
Mirror system consist of scientifically designed
high purity aluminium reflector for optical efficiency.
Serrated aluminium cross louvres are provided
for glare control. Batwing light distribution
ensures higher spacing/mounting height ratios,
efficient flux utilisation and excellent vertical
illumination.
|
|
|
|
Relamping:
Mirror assembly can be removed by
pulling out locking strips & resting the reflector
on hinging wires which also act as earthing.
Cable
Entry:
Is through 19mm dia knockout on top of luminaire
or through conduit pipes
Mounting:
2
Nos. 19 mm dia knockouts facilitate conduit suspension.
2 Nos, 6.5 mm dia holes also provided for surface
mounting.
Applications:
Luminaire can be used for illumination in offices,
assembly halls, banks, laboratories & other
commercial interiors.
|
|
|
Polar Diagram
- Intensity Distribution in cd/klm
|
|
|
Cat
Ref.
|
Lamp
|
Voltage
|
Current
|
Dimension
(mm)
|
Approx
Wt (Kgs)
|
Case
Lot
(Nos)
|
|
Type
|
No
|
Watts
|
(v)
|
(mA)
|
A
|
B
|
C
|
D
|
|
CSBW11
14HSB
|
FTL
|
1
|
36/40
|
240
|
0.23
|
1250
|
600
|
154
|
63
|
3.0
|
2
|
|
CSBW11
24HSB
|
FTL
|
2
|
36/40
|
240
|
0.45
|
1250
|
600
|
254
|
63
|
4.5
|
2
|
|
<<
|
|
Commercial
Mirror Louvre Luminaire
TLE
|
IP20
Type:
The luminaire is suitable for surface
mounting and for twin 11W compact fluorescent
lamps.
Luminaire:
Fabricated from CRCA sheet steel and white epoxy
powder coated. Prewired with copper wound ballast,
lamp holders and mains connector. Decorative high
impact polystyrene end plates make the luminaire
aesthetically appealing.
Optical
Assembly:
Mirror system is scientifically designed with
high purity Al reflectors for optical efficiency.
Batwing light distribution ensures higher spacing/mounting
height ratios, efficient flux utilisation and
excellent vertical illumination. Serrated Al cross
louvres are provided for minimizing glare.
|
|
|
|
Relamping:
Mirror assembly can be easily removed
by pulling out locking strips & resting the
reflector on hinging wires which also act as earthing.
Mounting:
4 Nos, spring loaded clamps facilitate mounting
on false ceilings.
Cable
Entry:
Is through an 11mm dia inlet provided on top of
luminaire.
Application:
Ideal for use in hotel lobbies, rooms, commercial
interiors, offices, banks, etc.
|
|
|
 |
Polar
Diagram - Intensity Distribution in cd/klm |
|
|
|
Cat
Ref.
|
Lamp
|
Voltage
|
Current
|
Dimension
(mm)
|
Approx
Wt (Kgs)
|
Case
Lot
(Nos)
|
|
Type
|
No
|
Watts
|
(v)
|
(A)
|
A
|
B
|
C
|
D
|
|
TLE211
|
CFL
|
2
|
11
|
240
|
0.35
|
330
|
200
|
254
|
63
|
2.0
|
6
|
|
|
|
<<
|
|
Triangular
Fittings
Triangular Mirror Fittings
 This
quality triangular symmetrical reflector fitting is recommended
for economical applications for even lighting. The housing is
made of high grade materials and finished in white powder coating
for durability. This fitting is suitable for ceiling mounting,
wall mounting and pendant mounting by the use of suspension
system. Available in standard metal reflector or high efficiency
mirror reflector.
|
 |
|
Model
No.
|
No.
of Lamps
|
L
|
W
|
H
|
|
JTF
220
|
2
X 18W
|
610
|
130
|
60
|
|
JTF
240
|
2
X 18W
|
1220
|
130
|
60
|
|
JTF
220/M
|
2
X 18W
|
610
|
130
|
60
|
|
JTF
240/M
|
2
X 18W
|
1220
|
130
|
60
|
| Note:
All dimensions in mm and the tolerance is +/- 1.5mm |
|
|
|
<<
|
|
|
|
