Commercial

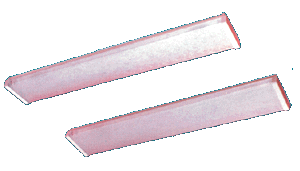

Prismlux/Icylux Luminaire
|
 Luminaire:
Housing fabricated from CRCA MS sheet and white
painted inside and outside. Prewired with vacuum
pressure impregnated copper ballast,
push fit bi pin rotor holder, pushfit starter
seat, power factor improvement capacitor and mains
connector. A specially designed polystyrene, prismatic
(CPLX)/Crystalline (CILX) diffuser is held in
position by white snap fit plastic end covers.
End covers also available in Rose Wood (RW), Grey
(G) and Pink (P) shades on request.
|
|
|
|
Relamping:
Diffuser can be easily opened for
maintenance by removing the end covers.
Cable
Entry:
Is through the conduit knockouts.
Mounting:
20mm knockouts facilitate conduit suspension.
Two nos. 6.5 mm dia holes are also provided for
surface mounting on ceiling.
Applications:
Specially designed for aesthetic glare free lighting
in office and commercial premises.
|
|
|
 |
|
|
Cat
Ref.
|
Lamp
|

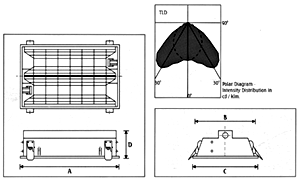

Dimension
(mm)
|
Approx
Wt (Kgs)
|
Case
Lot
(Nos)
|
|
Type
|
No
|
Watts
|
A
|
B
|
C
|
D
|
|
CPLX24HSB
|
FTL
|
2
|
36/40
|
1247
|
600
|
205
|
72
|
3.5
|
2
|
|
CPLX22HSB
|
FTL
|
2
|
18/20
|
639
|
300
|
205
|
72
|
2.3
|
2
|
|
CILX24HSB
|
FTL
|
2
|
36/40
|
1247
|
600
|
205
|
72
|
3.5
|
2
|
|
CILX22HSB
|
FTL
|
2
|
18/20
|
639
|
300
|
205
|
72
|
2.3
|
2
|
| 1. |
Use
appropriate suffix '/RW', '/G', '/P' for Rose Wood,
Grey, Pink respectively to the Cat. Ref. For e.g:
CPLX24HSB/RW indicates choice of Rose Wood colour |
| 2. |
Also
available with energy saving electronic ballast
or 5.5W (loss) VPIT ballast on request. In such
a case please replace suffix 'HSB' with either
'EB' or "HSBLL" respectively.
|
|
|
|
